PS-ATEX-FLOOD

PS-ATEX-FLOOD explosion proof LED light for hazardous areas

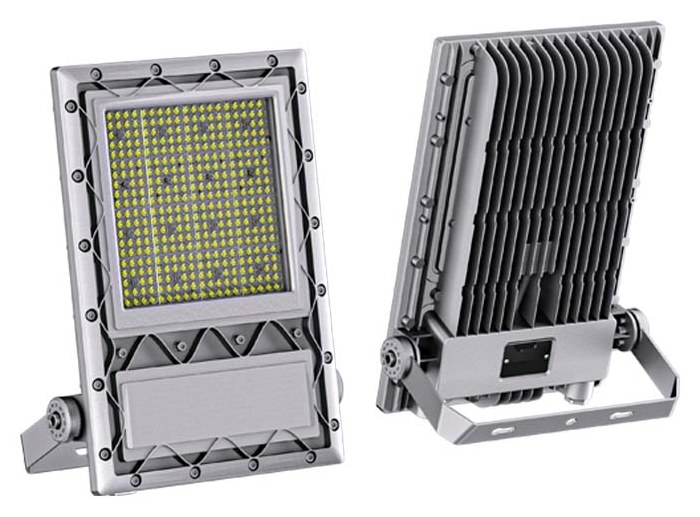

PS-ATEX-FLOOD is a flameproof LED floodlight for outdoor and indoor hazardous areas: tank farms, loading gantries, process plants and offshore-type structures. A heavy-duty die-cast housing with tempered glass, IP66 and IK10 ratings and a corrosion-resistant WF2 finish keeps it working in the harshest conditions.

ATEX and IECEx certified: Ex db IIB T4 Gb / Ex tb IIIC T130°C Db
100 W or 200 W, 160 to 170 lm/W
IP66 and IK10, 6 kV surge protection
PMMA lens with tempered glass cover
WF2 anti-corrosion finish
Adjustable mounting bracket

and IECEx

Weatherproof

Impact rated

5 Years

Warranty

Features

Built for explosive atmospheres

Floodlighting for refineries, chemical plants, fuel terminals, gas compressor stations and loading bays where flammable gas or dust can be present. Certified explosion protection, high efficacy and a long service life cut both risk and maintenance visits.

Certified protection

TÜV 25 ATEX 9333 X and IECEx TUR 25.0073X: flameproof (Ex db) and dust-protected (Ex tb) for Zones 1, 2, 21 and 22.

High efficacy

160 to 170 lm/W. The 200 W model delivers 32,000 lumens with a Type II road-style optic.

Heavy duty

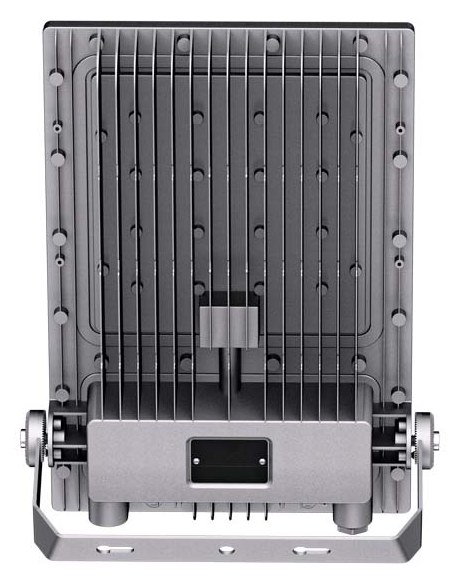

ADC12 die-cast aluminium, PMMA lens and tempered glass. IK10 impact and IP66 water and dust protection.

Corrosion resistant

WF2 rated AkzoNobel anti-corrosion coating for chemical and coastal sites.

6 kV surge protection

6 kV differential and common mode protection for exposed outdoor installations and long cable runs.

Optics choice

25, 55, 90 and 120° beams plus Type II, III and IV road-style optics; adjustable bracket.

Specification

Key specification

Input voltage	100 to 277 V AC, 50/60 Hz
Power	100 W / 200 W
Luminous flux	17,000 lm (100 W), 32,000 lm (200 W)
Efficacy	160 to 170 lm/W
Driver	Constant current driver
Colour temperature	5000K
CRI	Ra >70
Optic	Type II (other beams available)
ATEX marking	II 2 G Ex db IIB T4 Gb II 2 D Ex tb IIIC T130°C Db TÜV 25 ATEX 9333 X
IECEx marking	Ex db IIB T4 Gb / Ex tb IIIC T130°C Db IECEx TUR 25.0073X
Hazardous zones	Gas: Zone 1, Zone 2. Dust: Zone 21, Zone 22
IP / IK rating	IP66 / IK10
Surge protection	6 kV DM / 6 kV CM
Operating temperature	-30°C to +50°C
Lifetime	L70B10 108,000 h
Housing	ADC12 aluminium, WF2 anti-corrosion
Cable gland	Single compression, non-armoured; cable 3 x 2.5 mm², 0.8 m
Dimensions	486 x 349 x 70 mm (all wattages)
Weight	9.70 kg
Warranty	5 years

Applications

Where it is used

Tank farms and fuel terminals
Loading gantries and jetties
Chemical and process plants
Gas compressor and pumping stations

Options and accessories

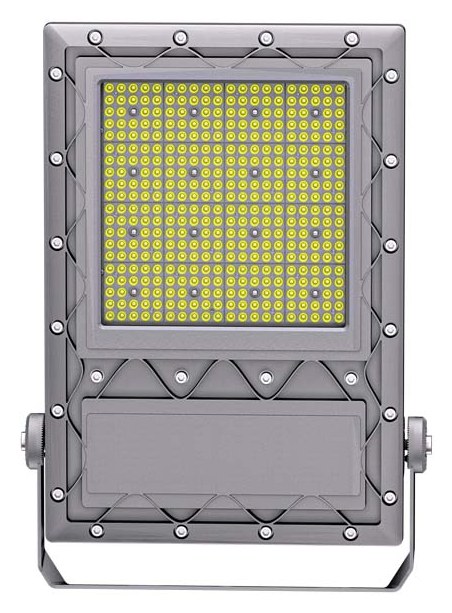

Adjustable mounting bracket

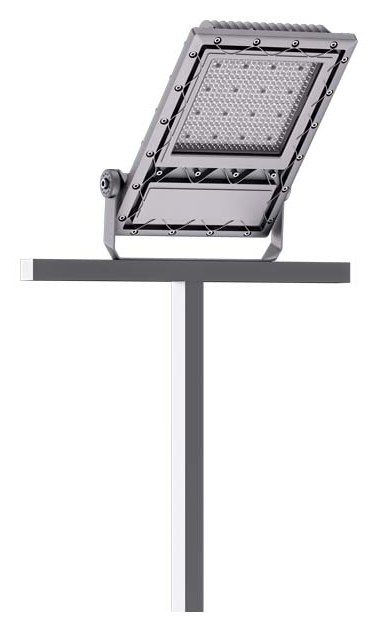

Pole mounting
40, 60, 75, 150 and 240 W versions to order
25, 55, 90, 120°, Type III and IV optics

New to hazardous area lighting? Read our ATEX explosion proof lighting guide.

See our LED lighting projects ›

Technical specifications

Models, watts, lumens and dimensions

Product	Power	Lumen output	Efficacy	CCT	Optic	Dimensions / weight
PS-ATEX-FLOOD 100	100 W	17,000 lm	170 lm/W	5000K	Type II	486 x 349 x 70 mm, 9.70 kg
PS-ATEX-FLOOD 200	200 W	32,000 lm	160 lm/W	5000K	Type II	486 x 349 x 70 mm, 9.70 kg
PS-ATEX-FLOOD 240 (to order)	240 W	38,400 lm	160 lm/W	3000 to 6500K	Choice of optics	486 x 349 x 70 mm, 9.70 kg

Specifications subject to change without notice. Source: PS-ATEX-FLOOD spec sheet, October 2026.

Downloads

Spec sheet

PS-ATEX-FLOOD spec sheet (PDF)Download spec sheet

FAQ

PS-ATEX-FLOOD questions

Which zones is the PS-ATEX-FLOOD suitable for?

It is category 2 equipment (II 2G / II 2D), suitable for gas Zones 1 and 2 and dust Zones 21 and 22.

Is it suitable for hydrogen?

No. It is certified for gas group IIB, not IIC.

What warranty do you give?

All Polaris products carry a 5-year warranty.
