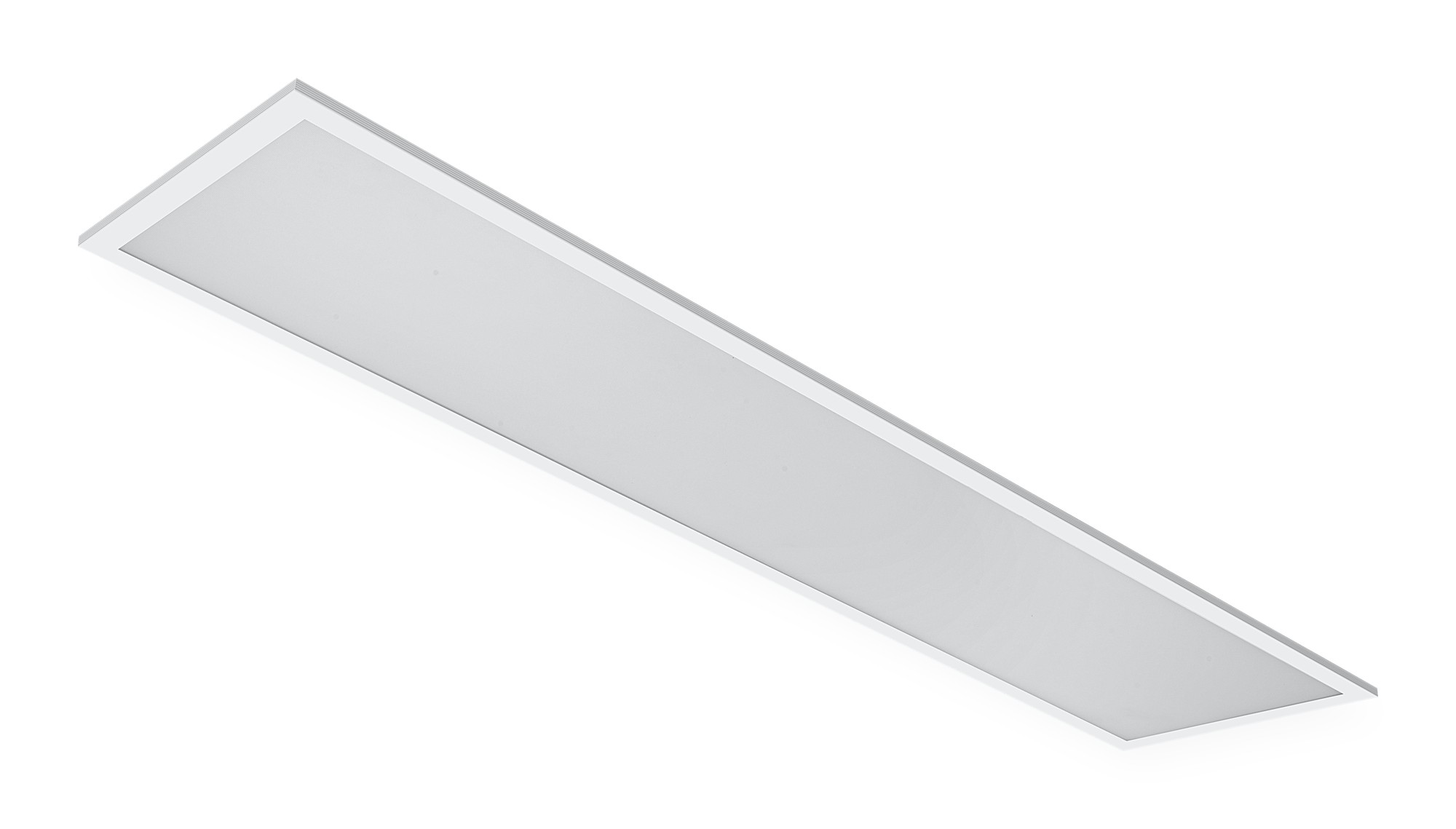

PS-PANEL+ 1200 x 300 LED panel with emergency option

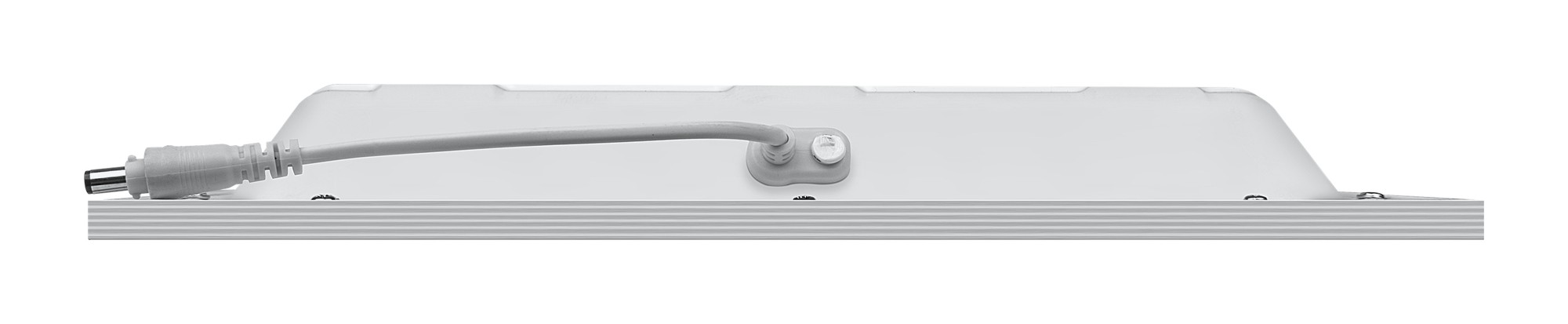

PS-PANEL+ is a 30 mm deep 1200 x 300 backlit LED panel with IP44 protection and up to 160 lm/W. A DIP switch on the loop in and out driver sets the output, and a remote 3 hour emergency pack can be added for escape route lighting.

1195 x 295 x 30 mm for 15 or 24 mm grids
Up to 4,200 lm at 27 W
160 lm/W, UGR <19, CRI >80
IP44 with TPa rated diffuser
DIP switch output; digital dimmable versions
Optional 3 hour remote emergency pack

160 lm/W

Efficacy

Splash proof

Emergency option

5 Years

Warranty

Features

Corridors, offices and washrooms

The narrow 1200 x 300 format suits corridors, circulation areas, offices and kitchens. IP44 protection covers splash prone areas such as washrooms, and the optional remote pack gives 3 hours of emergency light from the same fitting.

Output on site

A DIP switch selects 2,000 or 2,800 lm on the standard model, and 3,500 or 4,200 lm on the high output model.

160 lm/W

Efficient backlit design with luminaire efficacy up to 160 lm/W for low running costs.

IP44 rated

Protected against splashing water, for kitchens, washrooms and corridors.

Visual comfort

UGR <19 and a TPa rated diffuser, with colour consistency within 3 SDCM.

Emergency ready

Optional remote 3 hour emergency pack, also in self-test and DALI addressable versions.

Long life

Rated L80 B10 at 70,000 hours, at 25°C ambient. Aluminium frame in white RAL9016.

Specification

Key specification

Input voltage	220 to 240 V AC, 50/60 Hz
Dimensions	1195 x 295 x 30 mm
Cut-out	1185 x 285 mm
Luminous flux	2,000 / 2,800 lm (standard); 3,500 / 4,200 lm (high)
Power	12.5 / 17.5 W (standard); 22 / 27 W (high)
Efficacy	160 lm/W (standard); 159 lm/W (high)
Colour temperature	4000K
CRI / SDCM	Ra >80 / <3
Glare	UGR <19
Driver	Loop in/out, DIP switch output; digital dimmable versions
IP / IK rating	IP44 / IK04
Diffuser	TPa rated
Operating temperature	-20°C to +25°C
Lifetime	L80 B10, 70,000 h
Finish	White RAL9016, aluminium frame
Weight	2.1 kg

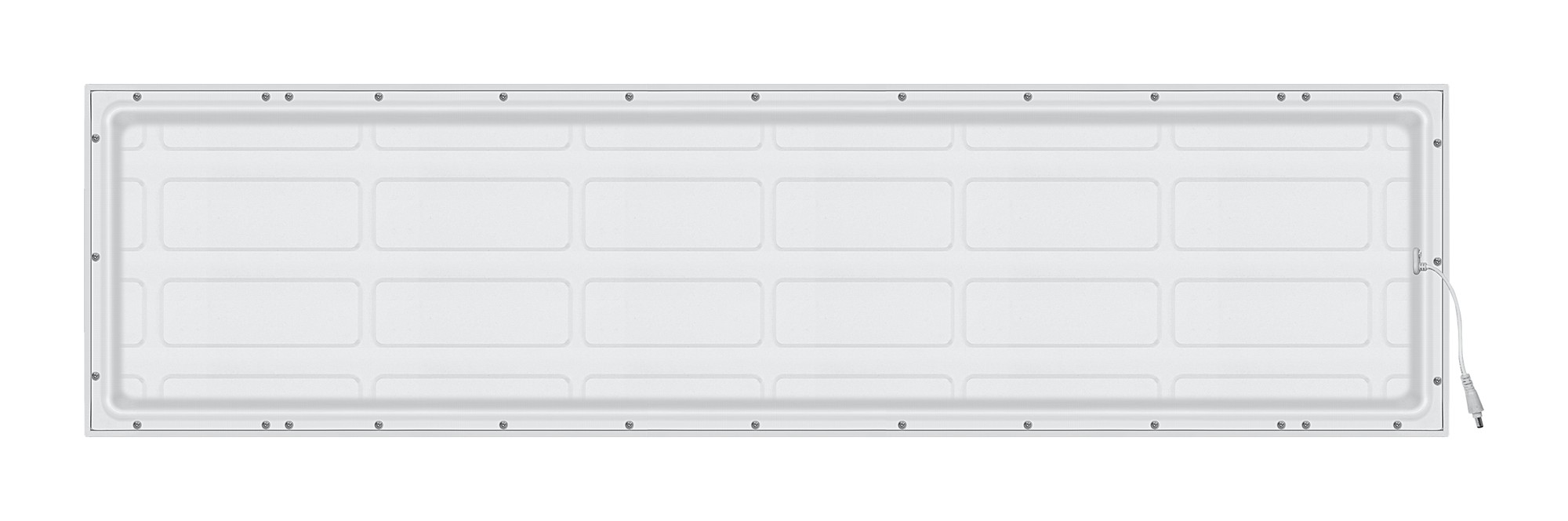

Mounting	Recessed in 15 or 24 mm grid; rear safety wire points
Emergency	Remote pack, 3 h, 3.5 W, 0 to 30°C
Warranty	5 years (emergency packs: see options)

Applications

Where it is used

Corridors and circulation areas
Offices and meeting rooms
Kitchens and washrooms (IP44)
Schools and healthcare

Options and accessories

Remote emergency pack, 3 h
Self-test or DALI emergency pack, 3 h
Surface mounting frame
Plasterboard recessing frame
4 point 1.5 m suspension kit

See our LED lighting projects ›

Technical specifications

Models, watts, lumens and dimensions

Product	Driver	Lumen output	Power	Efficacy	CCT	Dimensions
PS-PANEL+ S	Fixed output, DIP switch	2,000 / 2,800 lm	12.5 / 17.5 W	160 lm/W	4000K	1195 x 295 x 30 mm
PS-PANEL+ SD	Digital dimmable	2,000 / 2,800 lm	12.5 / 17.5 W	160 lm/W	4000K	1195 x 295 x 30 mm
PS-PANEL+ H	Fixed output, DIP switch	3,500 / 4,200 lm	22 / 27 W	159 lm/W	4000K	1195 x 295 x 30 mm
PS-PANEL+ HD	Digital dimmable	3,500 / 4,200 lm	22 / 27 W	159 lm/W	4000K	1195 x 295 x 30 mm
