PS-MILD low glare LED high bay

PS-MILD is a low glare LED high bay with UGR below 19, for warehouses, workshops, sports halls and other spaces where people look up. The aluminium housing is IP65 and IK10, and six sizes cover 60 to 300 W.

60 to 300 W in six models
7,800 to 43,200 lm
UGR <19 low glare optic
IP65 and IK10
10 kV surge protection
-40°C to +50°C operation

UGR <19

Low glare

Waterproof

Impact rated

5 Years

Warranty

Features

Made for spaces where people look up

Warehouses with high racking, workshops, gyms and sports halls need bright light without glare. PS-MILD keeps UGR below 19 so staff and players can look up in comfort.

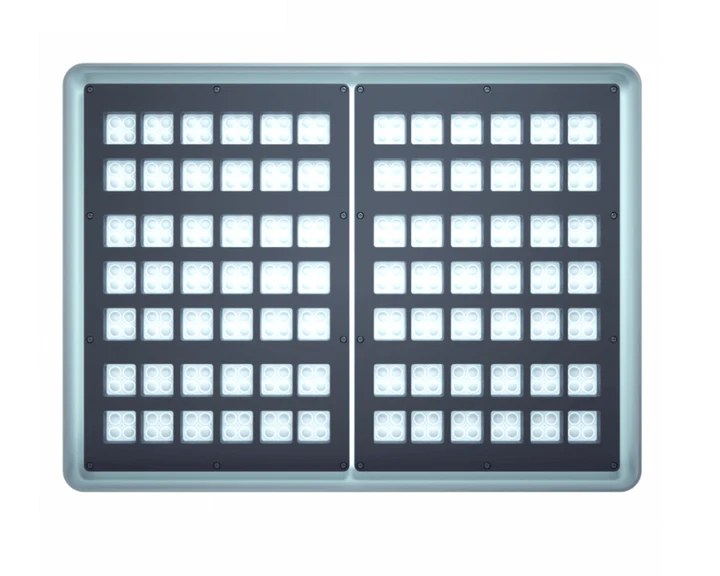

Low glare

UGR below 19 for visual comfort in work and sports areas.

Robust

IP65 and IK10 for dusty and demanding sites.

Surge protected

10 kV surge protection.

Wide range

Six models from 60 to 300 W.

Specification

Key specification

Input voltage	220 to 240 V AC
Power	60 to 300 W (see table)
Luminous flux	7,800 to 43,200 lm
CRI	Ra >80
Glare	UGR <19
Surge protection	10 kV
IP / IK rating	IP65 / IK10
Operating temperature	-40°C to +50°C
Lifetime	L90B10 >50,000 h
Warranty	5 years

Applications

Where it is used

Warehouses
Workshops
Sports halls
Gyms

See our logistics and warehouse projects ›

Technical specifications

Models, watts, lumens and dimensions

Model	Power	Lumens	Dimensions (mm)
PS-MILD 60	60 W	7,800 lm	362 x 257 x 120
PS-MILD 100	100 W	13,000 lm	362 x 257 x 120
PS-MILD 150	150 W	19,500 lm	415 x 310 x 120
PS-MILD 200	200 W	26,000 lm	487 x 362 x 120
PS-MILD 250	250 W	39,000 lm	720 x 365 x 130
PS-MILD 300	300 W	43,200 lm	720 x 365 x 130
