PS-FLOOD

PS-FLOOD LED floodlight for lamp posts and car parks

PS-FLOOD packs up to 68,000 lumens into a slim die-cast aluminium body just 57 to 74 mm deep. Mounted on lighting columns, lamp posts, walls or gantries, its asymmetric optics put light down onto the ground and keep upward light and spill low, so it suits car parks, yards, loading areas, perimeters and general area lighting. Our most popular choice is the 150 W model, delivering 25,500 lumens.

Six outputs from 100 to 400 W, 160 to 180 lm/W
Asymmetric optics with low upward light
Tempered glass with PMMA lenses for UV resistance
IP66 weatherproof, IK08 (IK10 with metal mesh)
6 kV surge protection, -40°C to +45°C
Optional visor and stainless steel mesh

170 lm/W

Typical efficacy

Weatherproof

Surge protection

5 Years

Warranty

Features

Made for columns and car parks

Fit PS-FLOOD to lighting columns, lamp posts, building walls or gantries to light car parks, service yards, loading bays, site perimeters and open areas. Asymmetric optics spread light evenly across the ground while limiting glare for drivers and spill onto neighbouring property.

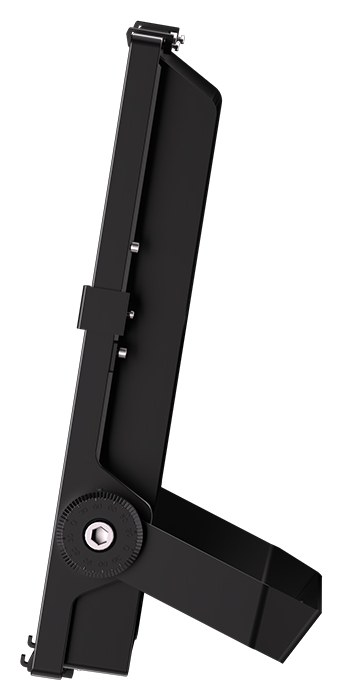

Slim profile

Only 57 mm deep up to 240 W and 74 mm at 300 to 400 W, for a neat look on columns, lamp posts, walls and gantries.

Asymmetric optics

Light is directed forward and down, improving lux levels on the target area with low upward light (ULOR).

Tough by design

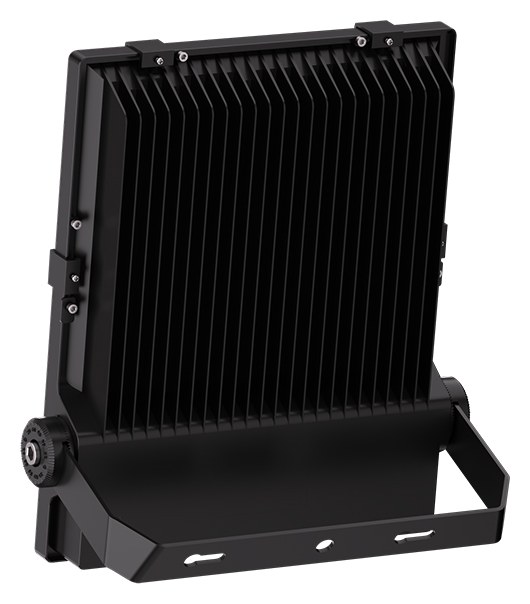

Die-cast aluminium, tempered safety glass and PMMA lenses. IK08 as standard, IK10 with the metal mesh.

All-weather

IP66 rated for -40°C to +45°C with 6 kV surge protection (10 or 20 kV option) for exposed outdoor sites.

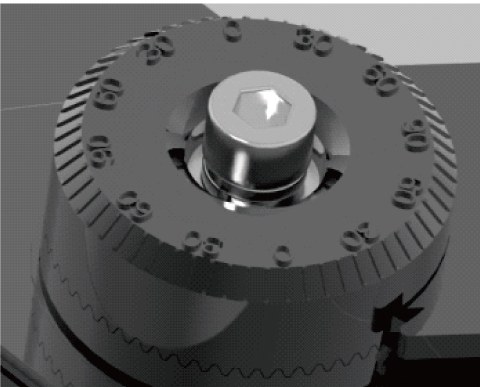

Precise aiming

Graduated mounting bracket with an angle scale makes accurate aiming and re-aiming quick and repeatable.

Efficient output

160 to 180 lm/W. Our most popular 150 W model gives 25,500 lumens; up to 68,000 lumens at 400 W.

Specification

Key specification

Input voltage	100 to 277 V AC
Power	100 / 150 / 200 / 240 / 300 / 400 W
Luminous flux	16,000 to 68,000 lm
Efficacy	160 to 180 lm/W
Power factor	>0.95
Colour temperature	4000K or 5000K
CRI	Ra >70
Optics	Asymmetric P45 as standard
Surge protection	6 kV (10 or 20 kV option)
IP / IK rating	IP66 / IK08 (IK10 with metal mesh)
Photobiological	RG0 / RG1
Operating temperature	-40°C to +45°C
Lifetime	L70B10 >108,000 h
Housing	Die-cast aluminium, black
Lens	PMMA lens with tempered glass cover
Mounting	Graduated adjustable bracket
Weight	2.5 to 9.6 kg (see table)
Cable	3 x 1.0 mm², 1 m
Warranty	5 years

Applications

Where it is used

Car parks and park and ride sites
Yards, depots and loading areas
Site perimeters and security lighting
Column, lamp post and wall mounting

Options and accessories

Metal visor for low spill light (sized per model)
Stainless steel mesh protection, IK10
Alternative optics: 25, 55, 90, 120°, P30, Type II, III and IV

See our LED lighting projects ›

Technical specifications

Models, watts, lumens and dimensions

Product	Power	Lumen output	Efficacy	Dimensions L x W x H	Weight	CCT
PS-FLOOD 100	100 W	16,000 lm	160 lm/W	288 x 254 x 57 mm	2.5 kg	4000K / 5000K
PS-FLOOD 150 Most popular	150 W	25,500 lm	170 lm/W	332 x 279 x 57 mm	3.3 kg	4000K / 5000K
PS-FLOOD 200	200 W	34,000 lm	170 lm/W	403 x 333 x 57 mm	5.2 kg	4000K / 5000K
PS-FLOOD 240	240 W	40,800 lm	170 lm/W	403 x 333 x 57 mm	5.45 kg	4000K / 5000K
PS-FLOOD 300	300 W	54,000 lm	180 lm/W	490 x 418 x 74 mm	9.6 kg	4000K / 5000K
PS-FLOOD 400	400 W	68,000 lm	170 lm/W	490 x 418 x 74 mm	9.6 kg	4000K / 5000K

Specifications subject to change without notice. Source: PS-FLOOD spec sheet, October 2026.
