PS-CORROSION IP69K corrosion proof LED batten

PS-CORROSION is built for areas cleaned with high-pressure, high-temperature water jets. A seamless PMMA tube with 304 stainless steel end caps resists corrosion and chemicals, making it ideal for food and drink processing, poultry and livestock houses, vehicle washes, cold rooms and marine environments.

IP69K for high-pressure, high-temperature washdown
IK10 impact rated
150 lm/W: 60 W gives 9,000 lm
Quality driver, L70B10 >102,000 h

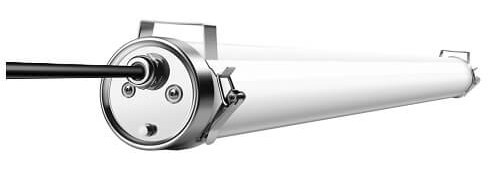

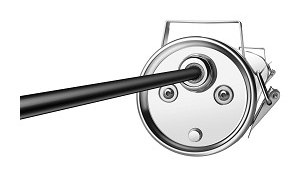

PMMA tube, 304 stainless steel end caps
Through-wiring, linkable in series

IP69K

Washdown

Impact rated

150 lm/W

Efficacy

5 Years

Warranty

Features

Made for the toughest cleaning regimes

Poultry and livestock houses, meat and dairy processing, breweries, vehicle washes and cold stores all face daily washdowns, ammonia and cleaning chemicals. The sealed PMMA body and stainless steel end caps keep water and dirt out and keep light levels high for years.

IP69K sealed

Withstands close-range high-pressure, high-temperature water jets used for hygienic washdown.

Corrosion proof

PMMA tube with 304 stainless steel end caps resists ammonia, salt and cleaning agents.

Efficient

150 lm/W with a quality driver: 9,000 lumens from 60 W, DALI dimming available.

Quick to install

Through-wired and linkable in series, with stainless steel mounting clips.

Impact resistant

IK10 rating for areas with equipment, livestock or vehicle traffic.

Wide range

Operates from -20°C to +45°C with 1 kV / 2 kV surge protection; L70B10 >102,000 h.

Specification

Key specification

Input voltage	220 to 240 V AC
Power	20 / 40 / 60 W
Luminous flux	3,000 / 6,000 / 9,000 lm
Efficacy	150 lm/W
Power factor / THD	>0.95 / <15%
Colour temperature	4000K standard; 3000 to 6500K to order
CRI	Ra >80
IP / IK rating	IP69K / IK10
Surge protection	1 kV DM / 2 kV CM
Operating temperature	-20°C to +45°C
Lifetime	L70B10 >102,000 h
Housing	PMMA tube, aluminium heat sink, 304 stainless steel end caps
Wiring	Through-wired, linkable; cable 3 x 1.0 mm², 0.8 m
Mounting	Suspension or surface, stainless steel clips
Dimensions	600 / 1200 / 1500 x 81 x 81 mm
Warranty	5 years

Applications

Where it is used

Poultry and livestock houses
Food, drink and dairy processing
Vehicle and truck washes
Cold rooms and marine areas

Options and accessories

Stainless steel mounting clips
Link cable for series connection
DALI dimming version

See our food retail and cold chain projects ›

Technical specifications

Models, watts, lumens and dimensions

Product	Power	Lumen output	Efficacy	Length x diameter	CCT
PS-CORROSION 20	20 W	3,000 lm	150 lm/W	600 x 81 mm	3000 to 6500K
PS-CORROSION 40	40 W	6,000 lm	150 lm/W	1200 x 81 mm	3000 to 6500K
PS-CORROSION 60	60 W	9,000 lm	150 lm/W	1500 x 81 mm	4000K
