PS-POLE

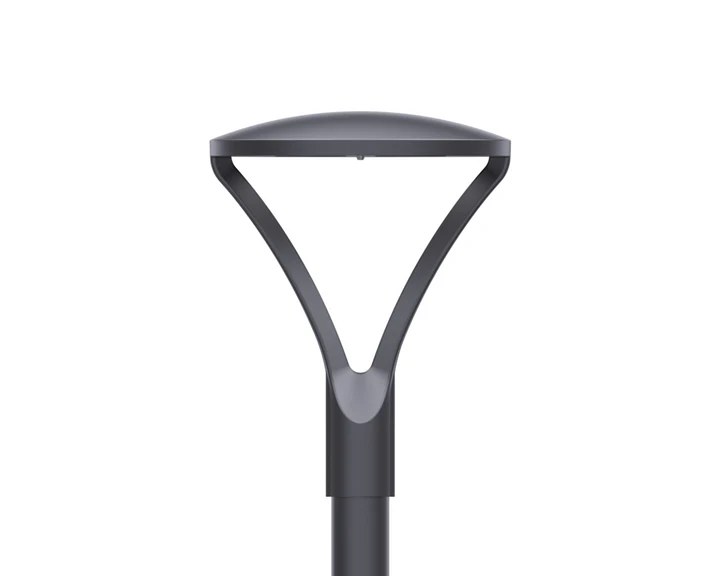

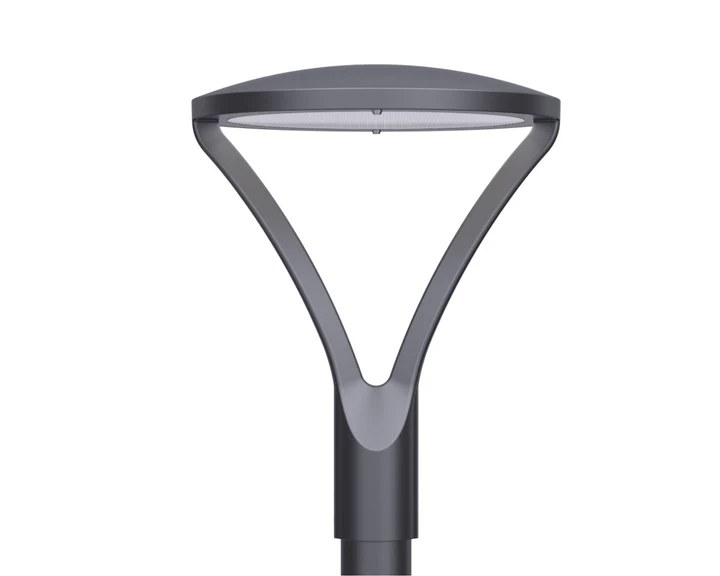

PS-POLE LED post top light for paths and plazas

PS-POLE is a die-cast aluminium LED post top light for paths, plazas, parks and car parks. It is IP66 and IK08, with symmetric or asymmetric optics, in four outputs from 30 to 90 W.

  • 30 to 90 W in four outputs
  • 5,100 to 13,500 lm
  • IP66 and IK08
  • Symmetric or asymmetric optics
  • 6 kV surge protection
  • Die-cast aluminium housing
IP66
Waterproof
IK08
Impact rated
6 kV
Surge protection
5 Years
Warranty
Request a quoteDownload spec sheet
Features

Made for paths, plazas and parks

Footpaths, campuses, retail parks and public spaces need even, comfortable light at low mounting heights. Choose symmetric or asymmetric optics to suit the layout.

Two optics

Symmetric or asymmetric light distribution.

Weatherproof

IP66 and IK08 for exposed outdoor sites.

Surge protected

6 kV surge protection.

Smooth top

A smooth top cover reduces dirt and water build up.

Specification

Key specification

Input voltage100 to 277 V AC
Power30 to 90 W (see table)
Luminous flux5,100 to 13,500 lm
CRIRa >70
OpticsSymmetric or asymmetric
Surge protection6 kV
IP / IK ratingIP66 / IK08
HousingDie-cast aluminium
Warranty5 years
Applications

Where it is used

  • Footpaths
  • Plazas and parks
  • Car parks
  • Campuses

See our LED lighting projects ›

Technical specifications

Models, watts, lumens and dimensions

ModelPowerLumensDimensions (mm)
PS-POLE 3030 W5,100 lm422 x 422 x 539
PS-POLE 4040 W6,800 lm422 x 422 x 539
PS-POLE 6060 W9,600 lm422 x 422 x 539
PS-POLE 9090 W13,500 lm422 x 422 x 539

Specifications subject to change without notice. Source: Polaris Light product data.

5 Yrs

5-year warranty as standard

Every Polaris product, including the PS-POLE, comes with a 5-year warranty and UK-based support.
