PS-FIELD high mast LED floodlight for stadiums and pitches

PS-FIELD is our high mast floodlight for full-size pitches, stadiums and large outdoor areas. Built from one, two or three identical modules, it delivers up to 270,000 lumens from 1500 W at 180 lm/W. A finned pure aluminium body keeps weight and wind load low, so it can often replace old metal halide fittings on existing masts.

Up to 1500 W and 270,000 lm at 180 lm/W
Modular: one, two or three modules
20°, 30° and 60° optics with low spill and back light
Integrated visor and precise angle scale
Laser sight aiming device (accessory)

180 lm/W

Efficacy

270,000 lm

From 1500 W

10 kV surge

5 Years

Warranty

Features

Light for the big pitch

Football and rugby stadiums, cricket grounds, athletics tracks, 3G and grass pitches, ports and large car parks. PS-FIELD brings our small-sided football experience to full-size pitches and high masts.

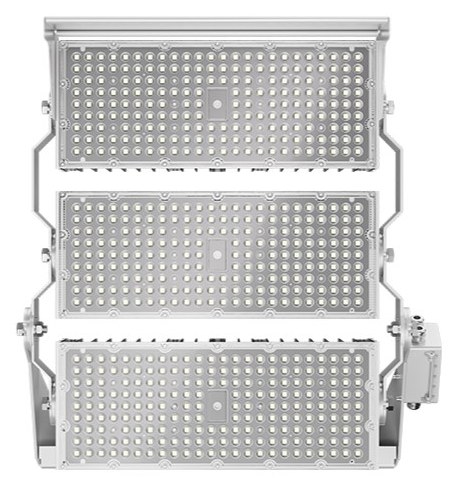

Modular design

One, two or three identical modules give 500, 1000 or 1500 W from a single platform.

Asymmetric optics

20°, 30° and 60° beams with low back light and spill. The visor further cuts light pollution.

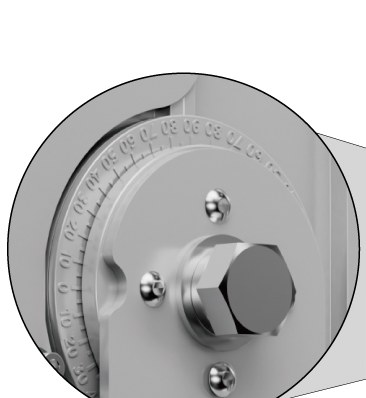

Accurate aiming

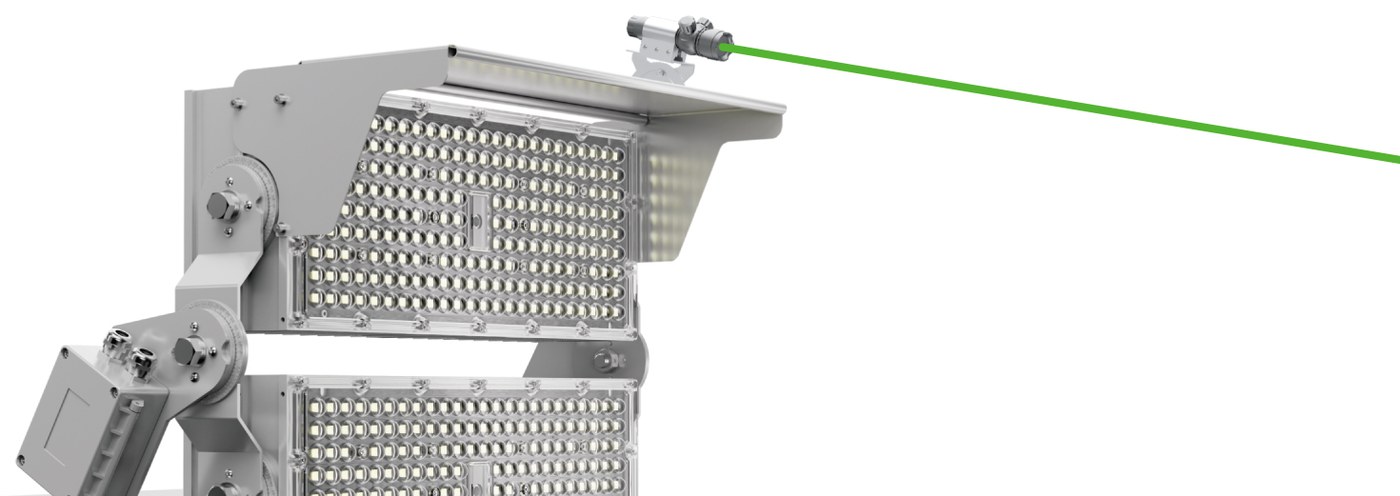

A scale on every module bracket and an optional laser sight (range up to 1,000 m) give fast, repeatable aiming.

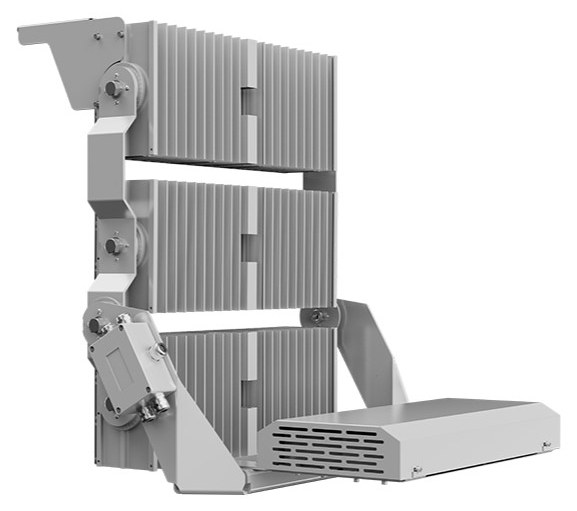

Light and cool

Finned pure aluminium (209 W/m·K) for better heat dissipation: 27.5 kg for the 1500 W model.

Smart control

quality driver over 93% efficient, with DMX, DALI, ZigBee and 0/1-10 V options for scenes and dimming.

Broadcast option

High TLCI and CRI up to 90 for flicker-free filming.

Specification

Key specification

Input voltage	100 to 277 V AC, 50/60 Hz
Power	500 / 1000 / 1500 W
Luminous flux	90,000 / 180,000 / 270,000 lm
Efficacy	180 lm/W
LED	Cree 5050
Power factor	>0.95
THD	<15%
CRI / SDCM	Ra >70 (up to 90 option) / <6
Optics	20°, 30°, 60°
Surge protection	10 kV (20 kV option)
IP / IK rating	IP66 / IK08
Operating temperature	-40°C to +60°C
Driver protection	OTP, OCP, OVP, SCP
Photobiological	RG0 / RG1
Lifetime	50,000 h; TM-21 L90B10 >50,000 h
Housing	Pure aluminium, 209 W/m·K
Control	DMX, DALI, ZigBee, 0/1-10 V
Weight	12.5 / 19.6 / 27.5 kg
Warranty	5 years

Applications

Where it is used

Football and rugby stadiums
3G, 4G and grass pitches
Cricket grounds and athletics tracks
Ports, rail yards and large car parks

Options and accessories

Laser sight aiming device, range up to 1,000 m
Visor for spill and glare control (integrated)
DMX, DALI, ZigBee or 0/1-10 V driver

Planning a pitch or court? See LED sports lighting, 5-a-side pitch lighting, tennis court lighting and padel court lighting.

See our 5-a-side and sports projects ›

Technical specifications

Models, watts, lumens and dimensions

Product	Power	Lumen output	Efficacy	Optics	Dimensions L x W x H	Net weight
PS-FIELD 500	500 W	90,000 lm	180 lm/W	20 / 30 / 60°	498 x 468 x 250 mm	12.5 kg
PS-FIELD 1000	1000 W	180,000 lm	180 lm/W	20 / 30 / 60°	605 x 630 x 421 mm	19.6 kg
PS-FIELD 1500	1500 W	270,000 lm	180 lm/W	20 / 30 / 60°	605 x 630 x 631 mm	27.5 kg
