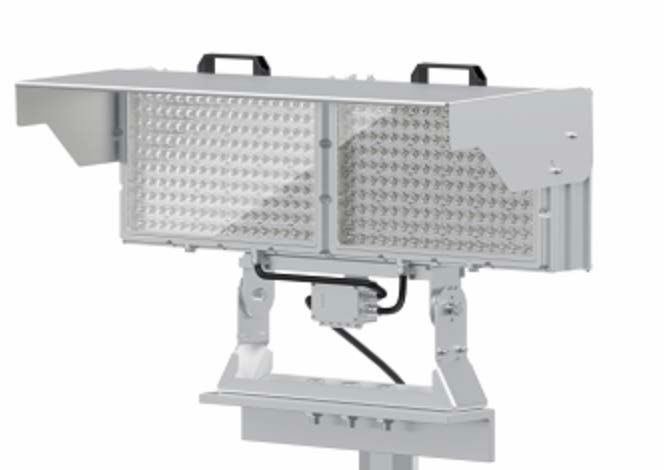

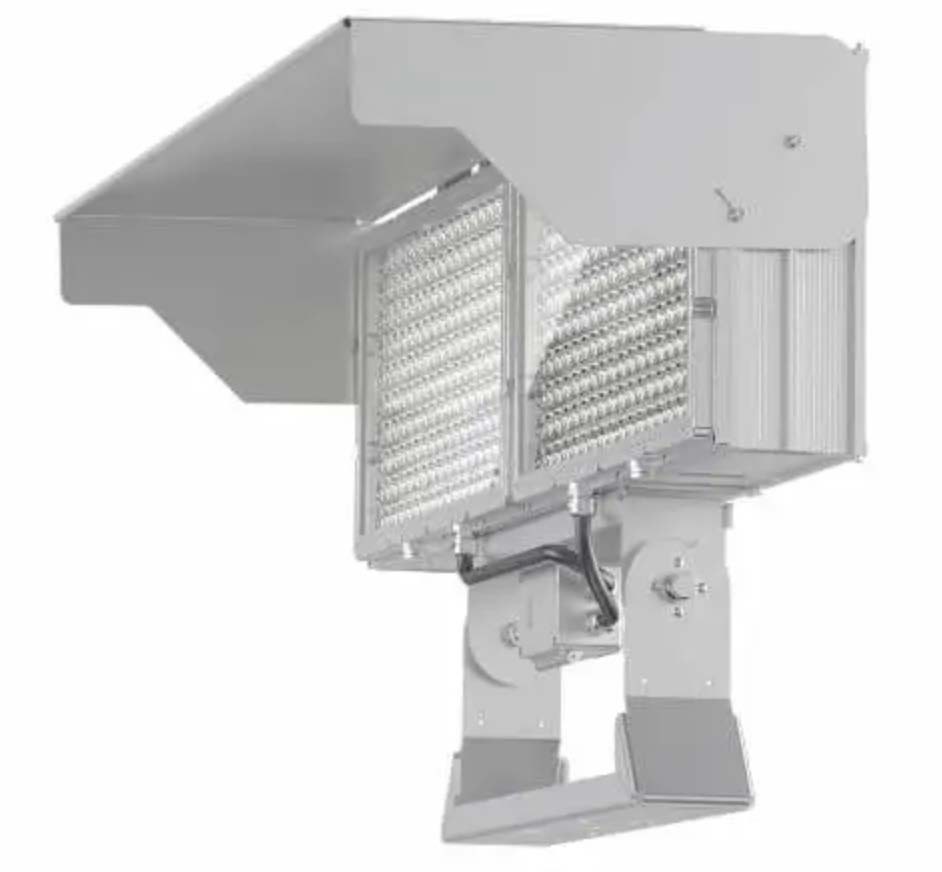

PS-FIELD-MAX high power LED sports floodlight

PS-FIELD-MAX is a high power LED floodlight for sports fields, concert halls and airfields. A wide range of beam angles lets it deliver strong light to targeted areas or from very high positions.

600 W and 1200 W models
90,000 and 180,000 lm
150 lm/W
60° x 150°, 60° and 90° beams
IP65 protection
2700K to 6500K

150 lm/W

Efficacy

Waterproof

180k lm

Max output

5 Years

Warranty

Features

Made for sports fields

Football pitches, arenas, concert halls and airfields need high output from tall masts. Pick the beam to suit mast height and pitch size, with optional daylight sensor and DALI, Zigbee or DMX512 control.

High output

Up to 180,000 lumens from one 1200 W fitting.

Beam choice

60° x 150°, 60° and 90° beams.

Controls

1-10V, DALI, photocell or DMX512, with optional daylight sensor and Zigbee.

Precise aiming

Precise angle rotation for accurate aiming.

Specification

Key specification

Input voltage	100 to 277 V AC or 200 to 480 V AC
Power	600 W or 1200 W
Luminous flux	90,000 or 180,000 lm
Efficacy	150 lm/W
Beam angles	60° x 150°, 60°, 90°
CRI	Ra >80
Colour temperature	2700K to 6500K
IP rating	IP65
Operating temperature	-30°C to +50°C
Controls	1-10V, DALI, photocell, DMX512; optional daylight sensor and Zigbee
Housing	Extruded 6063 aluminium, powder coated, grey; polycarbonate lens
Warranty	5 years
