PS-PADEL-LINEAR low glare LED padel court light

PS-PADEL-LINEAR is a slim 1989 mm linear light for padel courts. A cut-off lens sends light straight onto the playing area with very low glare, and quick connect terminals let fittings be linked along the court guardrail or hung from the roof.

24, 40, 55 or 60 W per fitting
Up to 10,800 lm and up to 190 lm/W
P30 asymmetric optic with cut-off
IP65 and IK10, aluminium housing
Remote driver box, 180 to 528 V, 10 kV surge
DALI-2, D4i, 0/1-10V or knob dimmer

190 lm/W

Efficacy

Low glare

Cut-off lens

Ball impact

5 Years

Warranty

Features

Made for padel courts

Indoor and covered padel clubs need even, glare free light on court so players can follow a fast ball off the glass. Mount PS-PADEL-LINEAR on the guardrail or suspend it above the court, then set the level at the driver box or with the knob dimmer.

Low glare

A linear lens with extra cut-off puts light onto the court, not into players eyes or beyond the court.

Up to 190 lm/W

Up to 10,800 lumens per fitting for high lux levels with low running costs.

IK10 tough

IK10 rated aluminium housing with a PC optic to withstand ball strikes, rated IP65.

Quick connect

Plug-in terminals link fittings along the run, fed from a remote driver box.

Surge protected

10 kV differential and common mode surge protection, 180 to 528 V input.

Dimming

DALI-2 and D4i, or 0/1-10V, PWM and passive resistance dimming, plus an optional knob dimmer.

Specification

Key specification

Input voltage	180 to 528 V AC, 50/60 Hz (remote driver)
Power	24 / 40 / 55 / 60 W
Luminous flux	4,560 / 7,600 / 9,900 / 10,800 lm
Efficacy	Up to 190 lm/W
Driver	Remote driver box, power factor >0.95, THD <8%
CRI / MacAdam	Ra >80 / ≤5
Colour temperature	3000K to 6500K (5 options)
Optic	P30 asymmetric
Surge protection	10 kV DM / 10 kV CM
IP / IK rating	IP65 / IK10
Operating temperature	-40°C to +45°C
Lifetime	L70B10 >102,000 h (TM-21)
Housing	Aluminium 6063, silver; PC optic
Dimensions	1989 x 49 x 35 mm
Controls	DALI-2, D4i, 0/1-10V, PWM, knob dimmer
Cables	3 x 1.5 mm² plug-in male and female leads
Mounting	Guardrail bracket or suspension
Warranty	5 years

Applications

Where it is used

Indoor padel clubs
Covered padel courts
Multi-court sports centres
Club refurbishments

Options and accessories

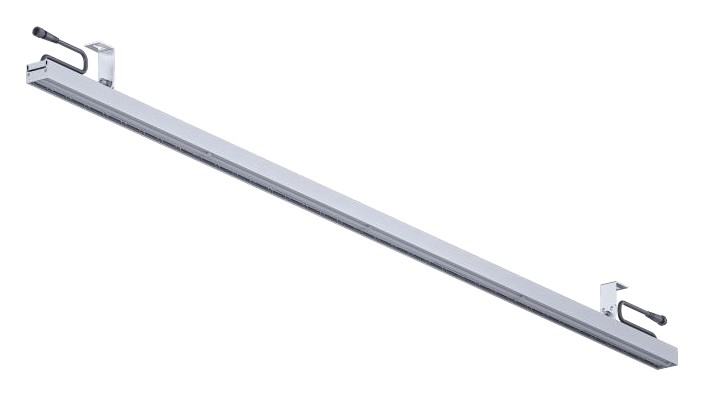

Guardrail mounting bracket

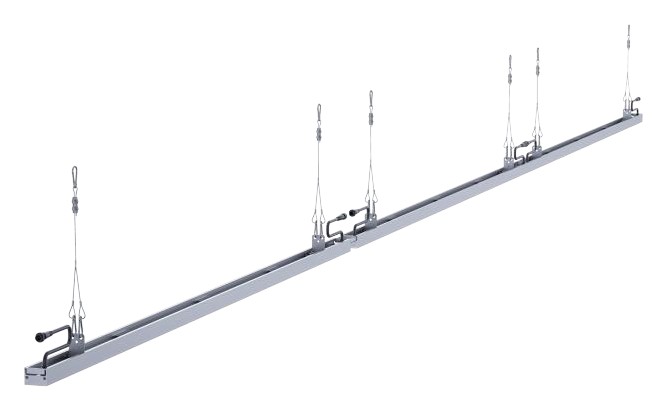

Suspension cable
Remote driver box
Knob dimmer

Planning a pitch or court? See LED sports lighting, 5-a-side pitch lighting, tennis court lighting and padel court lighting.

See our 5-a-side and sports projects ›

Technical specifications

Models, watts, lumens and dimensions

Product	Power	Lumen output	Efficacy	Optic	Dimensions L x W x H
PS-PADEL-LINEAR 24	24 W	4,560 lm	190 lm/W	P30	1989 x 49 x 35 mm
PS-PADEL-LINEAR 40	40 W	7,600 lm	190 lm/W	P30	1989 x 49 x 35 mm
PS-PADEL-LINEAR 55	55 W	9,900 lm	180 lm/W	P30	1989 x 49 x 35 mm
PS-PADEL-LINEAR 60	60 W	10,800 lm	180 lm/W	P30	1989 x 49 x 35 mm
